VitriBond Marine

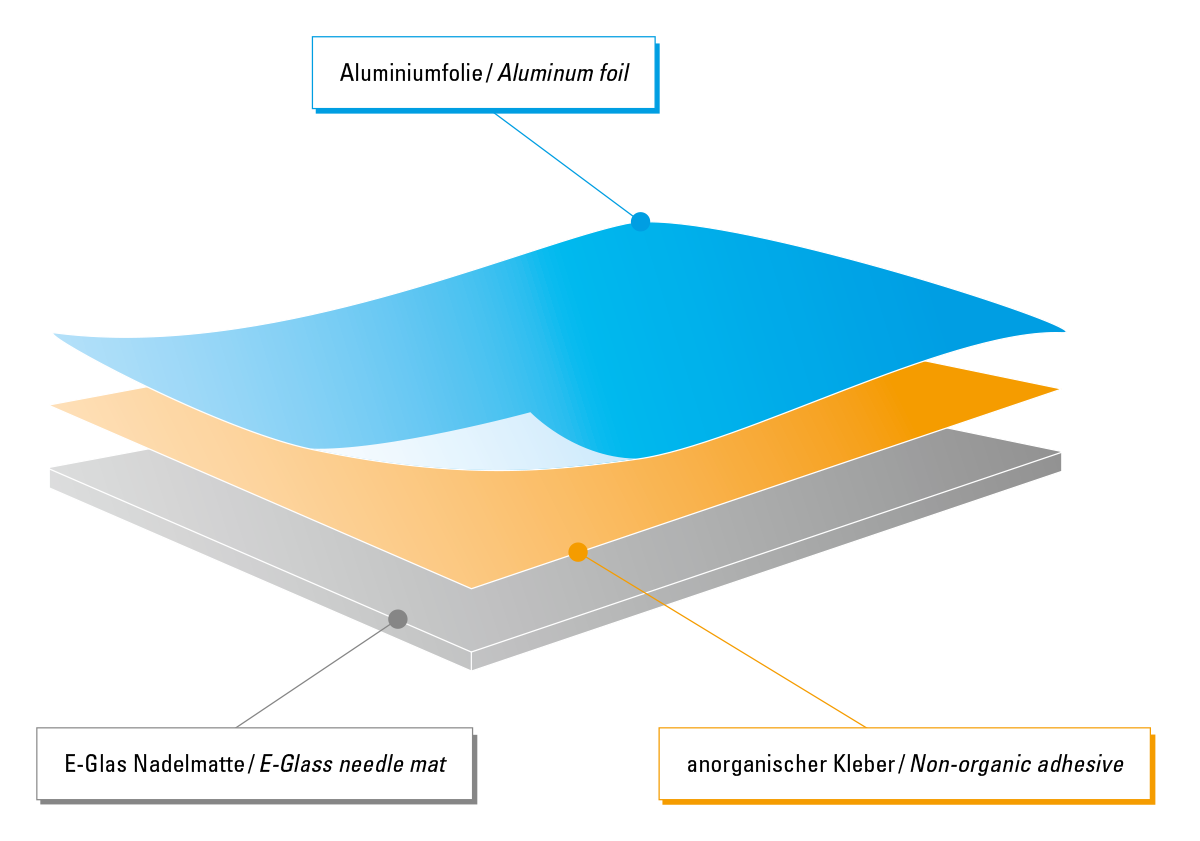

VitriBond Marine is a non-flammable product for restoring the fire protection integrity of wall and ceiling elements in shipbuilding. Due to the endothermic effect of the non-organic adhesive in the product structure, VitriBond Marine is ideally suited as a fire protection cover for openings and fixtures in vertical and horizontal sur-faces onboard ships.

Order free product sample now!

Certifications

VitriBond Marine is module B certified. Culimeta is also owner of a valid module D certificate.

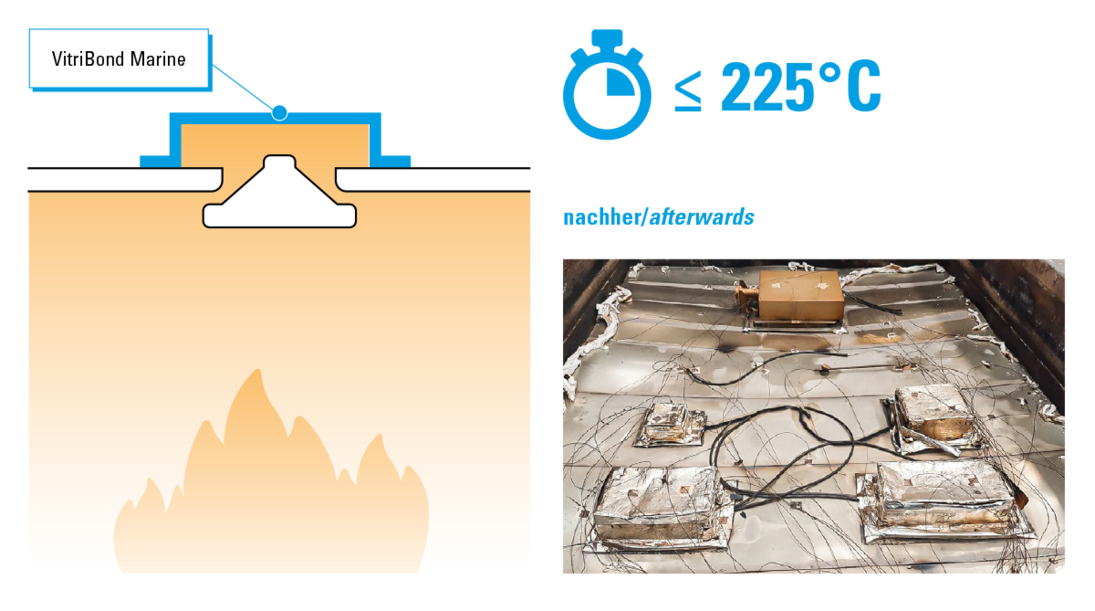

Fire resistance test for horizontal dividing surfaces onboard ships

VitriBond Marine has been successfully certified by our customers in their application as a cover for downlights and speakers for fire resistance class B15. These tests validate the resistance of the test structure and monitor the temperature increase on the far side of the fire.

Benefits of VitriBond Marine

  • Light weight
  • Components safe to us
  • Easy to assemble
  • Suitable for downlights, loudspeakers, hinged frames, inspection openings,...
  • Low installation height
  • Cut and adapt using standard tools (industrial scissors)

Technical product information

  • Area weight: 900 g/m² ± 15 %
  • Width: 1000 mm ± 10 mm
  • Thickness: 5,0 mm ± 2 mm
  • Roll length: 40 m

Processing

  • VitriBond Marine is available in rolls
  • Bonding of the joints and fixing to the elements with aluminum adhesive tape certified module B
